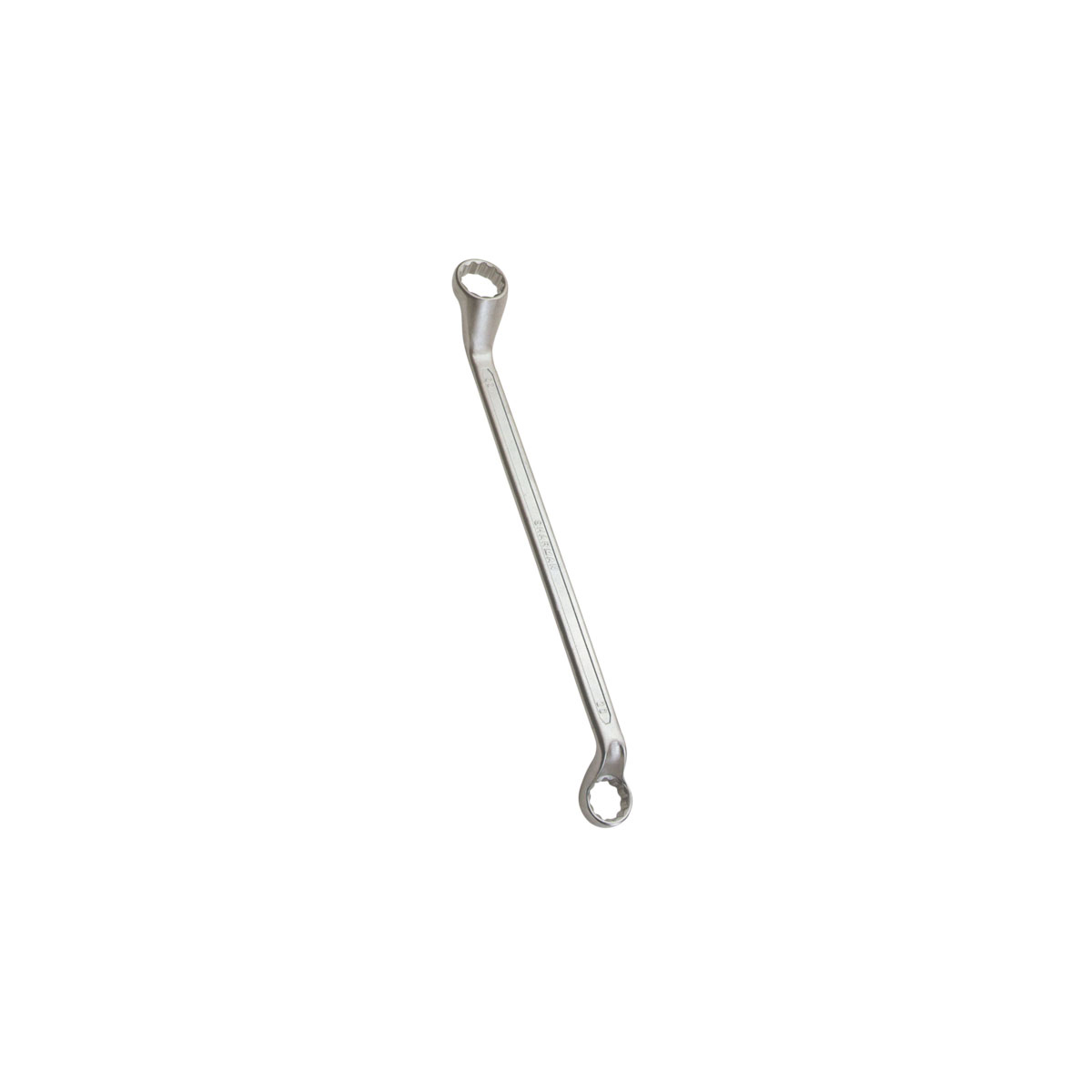

BI-HEXAGON RING SPANNER COLD STAMPED (DIN-838)


DROP FORGED, CHROME VANADIUM STEEL, CHROME PLATED, AVAILABLE IN LOOSE PIECES AND SETS.

* Also available with private logo


  SIZE LENGTH QTY./CTN. GR.WT.
ART. No.
mm
inch
mm
pcs.
kgs.
42701
6 x 7
1/4x5/16
165
400
19.500
42702
8 x 9
5/16x3/8
180
300
18.000
42703
10 x 11
3/8x7/16
195
250
20.200
42704
10 x 13
  216
200
19.500
42705
12 x 13
  216
200
22.500
42706
13 x 15
1/2x9/16
239
150
21.900
42707
14 x 15
9/16x5/8 239
150
23.200
42708
13 x 17
  262
150
24.700
42709
16 x 17
19/32x11/16
262
100
20.500
42710
16 x 18
5/8x11/16 262
100
21.500
42711
17 x 19
  290
100
24.300
42712
18 x 19
11/16x3/4
320
100
25.000
42713
19 x 22
3/4x25/32
320
80
24.400
42714
20 x 22
13/16x7/8
320
60
20.100
42715
21 x 23
  325
60
21.300
42716
22 x 24
  325
60
22.500
42717
24 x 26
15/16x1 337
60
24.300
42718
24 x 27
  337
60
24.300
42719
25 x 28
1x1.1/8
346
40
19.900
42720
27 x 32
1.1/16x1.1/8
357
40
24.500
42721
30 x 32
1.1/16x1.1/4 360
40
25.100
42722
30 x 36
  405
30
23.400
42723
32 x 36
  405
30
23.400
42724 36 x 41   445 20 24.600

METRIC SIZES SETS


  NO. OF SIZE QTY./CTN. GR.WT.
SET No.
pcs./set
mm
set.
kgs.
42780
6 6x7,8x9,10x11,
12x13,14x15,16x17
30 19.900
42781
8 6x7,8x9,10x11,
12x13,14x15,16x17,
18x19,20x22
20 24.700
42782 12 6x7,8x9,10x11,
12x13,14x15,16x17,
18x19,20x22,21x23,
24x26,25x28,30x32
8 24.900
