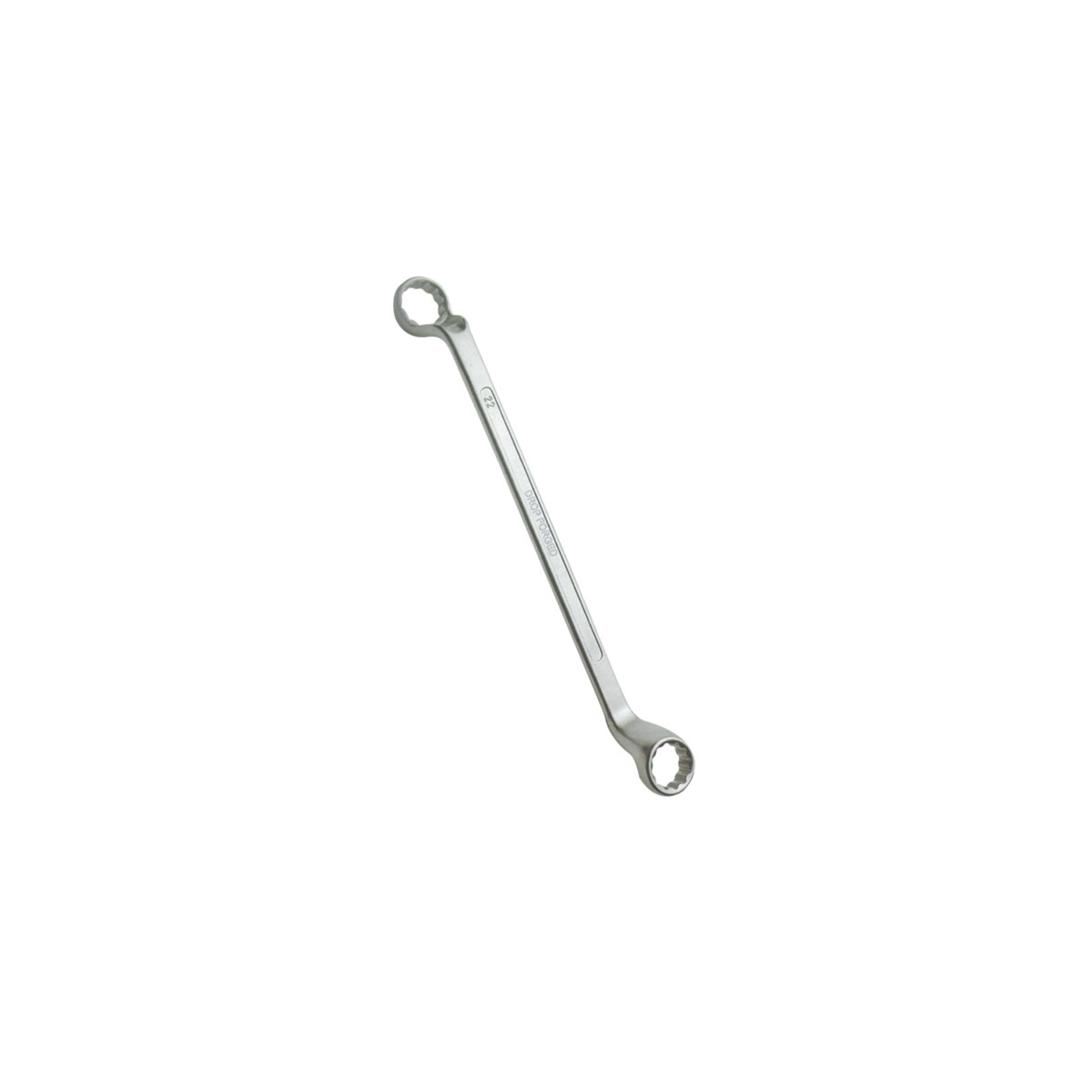

BI-HEXAGON RING SPANNER FULL POLISHED (DIN-838)


DROP FORGED, CHROME VANADIUM STEEL, AVAILABLE IN LOOSE PIECES AND SETS.

* Also available with private logo


  SIZE LENGTH QTY./CTN. GR.WT.
ART. No.
mm
inch
mm
pcs.
kgs.
42501
6 x 7 1/4x5/16
165
400
17.500
42502
8 x 9
5/16x3/8
180
300
17.100
42503
10 x 11
3/8x7/16
195
250
19.000
42504
10 x 13
  216
200
19.500
42505
12 x 13
  216
200
20.700
42506
13 x 15
1/2x9/16
239
150
20.400
42507
14 x 15
9/16x5/8 239
150
22.500
42508
13 x 17
  262
150
23.200
42509
16 x 17
19/32x11/16
262
100
19.500
42510
16 x 18
5/8x11/16 262
100
20.500
42511
17 x 19
  290
100
23.700
42512
18 x 19
11/16x3/4
320
100
23.900
42513
19 x 22
3/4x25/32
320
80
24.500
42514
20 x 22
13/16x7/8
320
80
25.100
42515
21 x 23
  325
60
20.700
42516
22 x 24
  325
60
23.100
42517
24 x 26
15/16x1 337
60
23.700
42518
24 x 27
  337
40
18.700
42519
25 x 28
1x1.1/8
346
40
19.500
42520
27 x 32
1.1/16x1.1/8
357
40
23.900
42521
30 x 32
1.1/16x1.1/4 360
40
24.700
42522
30 x 36
  412
30
21.900
42523
32 x 36
  412
30
24.000
42524 36 x 41   443 20 20.200

METRIC SIZES SETS


  NO. OF SIZE QTY./CTN. GR.WT.
SET No.
pcs./set
mm
set.
kgs.
42580
6 6x7,8x9,10x11,
12x13,14x15,16x17
30 18.800
42581
8 6x7,8x9,10x11,
12x13,14x15,16x17,
18x19,20x22
20 23.500
42582 12 6x7,8x9,10x11,
12x13,14x15,16x17,
18x19,20x22,21x23,
24x27,25x28,30x32
8 24.500
