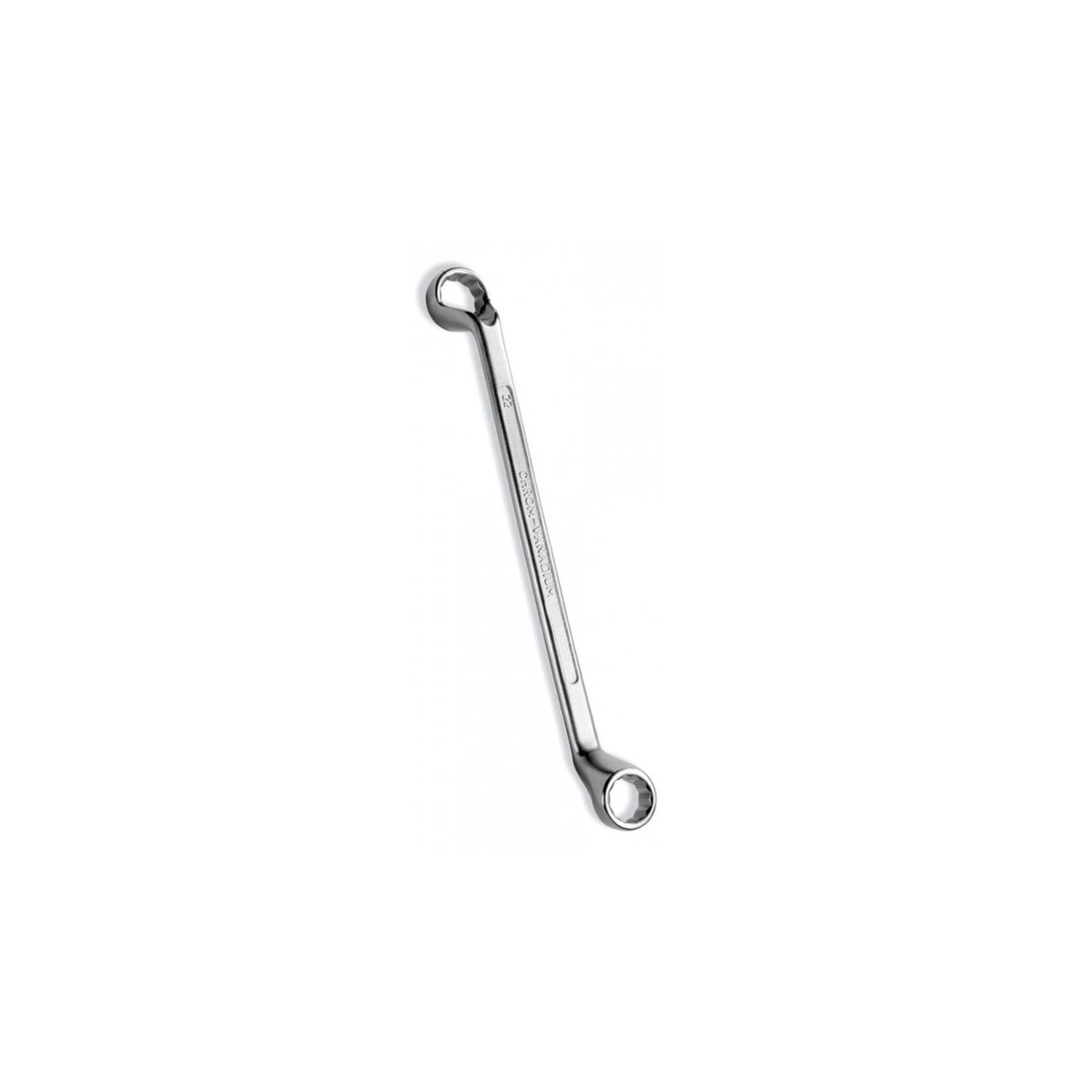

BI-HEXAGON RING SPANNER (DIN – 838)


DROP FORGED, CHROME VANADIUM STEEL, CHROME PLATED, POLISHED HEAD, AVAILABLE IN LOOSE PIECES AND SETS.


  SIZE LENGTH QTY./CTN. GR.WT.
ART. No.
mm
inch
mm
pcs.
kgs.
42101
6 x 7
1/4x5/16 180
400
21.100
42102
8 x 9
  195
300
20.400
42103
10 x 11
3/8x7/16 205
250
21.500
42104
12 x 13
  225
200
23.500
42105
14 x 15
1/2x9/16
235
150
21.000
42106
16 x 17
5/8x11/16
255
100
19.000
42107
18 x 19
3/4x25/32
275
100
24.500
42108
20 x 22
13/16x7/8
300
75
23.600
42109
21 x 23
  315
60
20.700
42110
24 x 26
  335
60
25.200
42111
24 x 27 15/16x1 335
60 25.200
42112
25 x 28
  335
40
20.500
42113
27 x 32
1.1/16x1.1/4 365
40 25.700
42114
30 x 32
  365
40 25.700
42115
30 x 36
  410
30
23.400
42116
32 x 36
  410
30
23.400
42117 36 x 41   450 20 24.600

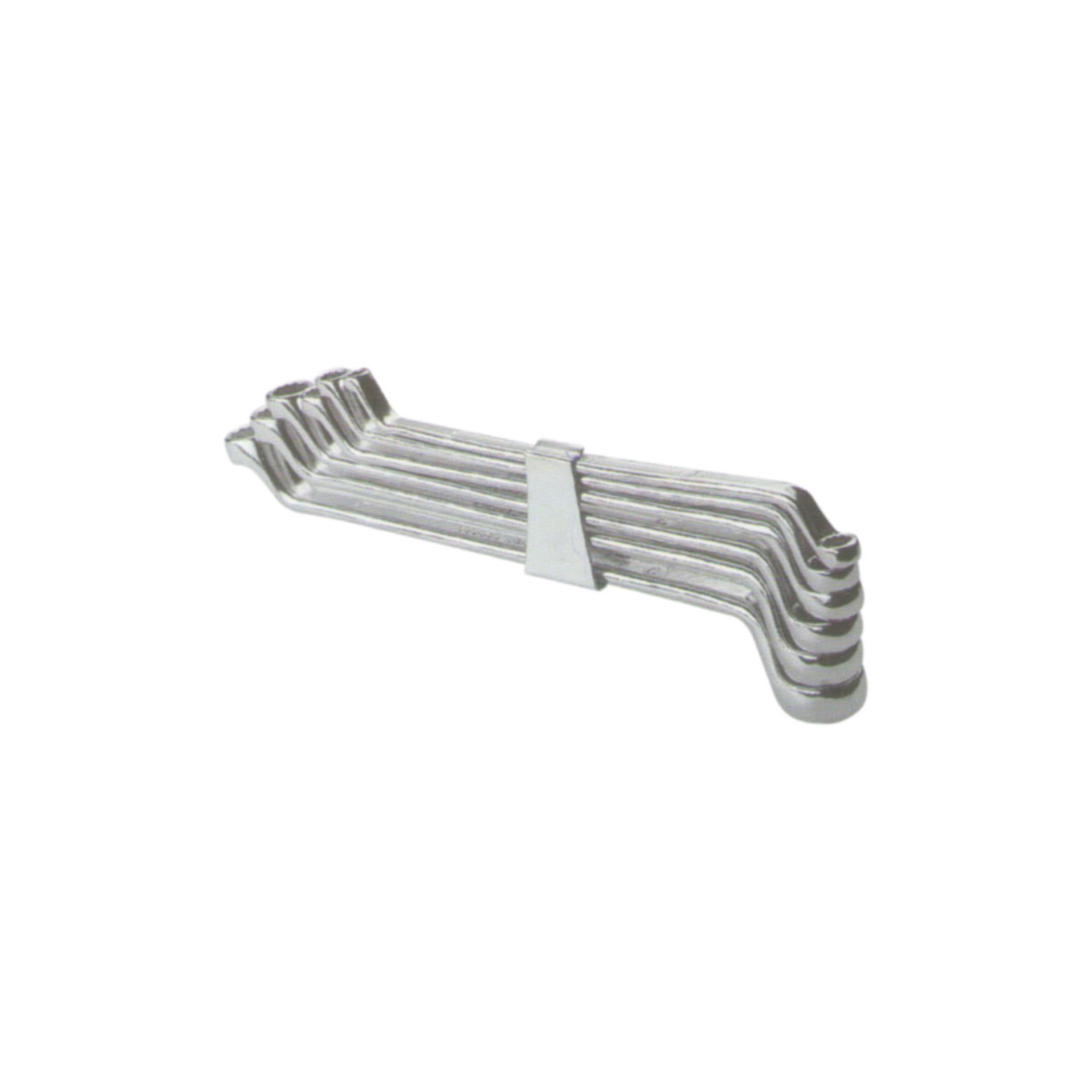

METRIC SIZES SETS


  NO. OF SIZE QTY./CTN. GR.WT.
SET No.
pcs./set
mm
set.
kgs.
42180 6 6x7, 8x9, 10x11,
12x13, 14x15, 16x17
30 19.600
42181
8 6x7, 8x9, 10x11,
12x13, 14x15, 16x17
18x19, 20x22
20 23.200
42182 12 6x7, 8x9, 10x11,
12x13, 14x15, 16x17
18x19, 20x22, 21x23,
24x27, 25x28, 30x32
8 23.300
