BI-Hexagon Ring Spanner Cold Stamped
Drop Forged, Chrome Vanadium Steel, Chrome Plated, Available In Loose Pieces And Sets.
| SIZE | LENGTH | WEIGHT | STD. PACKING | CARTON PACKING |
mm |
mm |
GMS |
pcs. |
pcs. |
|---|---|---|---|---|
| 6 x 7 | 183 | 50 | 10 | 300 |
| 8 x 9 | 192 | 60 | 10 | 300 |
| 10 x 11 | 202 | 85 | 10 | 250 |
| 12 x 13 | 217 | 115 | 10 | 200 |
| 14 x 15 | 233 | 130 | 10 | 200 |
| 16 x 17 | 251 | 170 | 10 | 120 |
| 18 x19 | 268 | 200 | 10 | 100 |
| 20 x 22 | 296 | 2275 | 10 | 100 |
| 21 x 23 | 322 | 2295 | 5 | 60 |
| 24 x 27 | 330 | 370 | 5 | 60 |
| 25 x 28 | 345 | 395 | 5 | 50 |
| 30 x 32 | 370 | 510 | 5 | 40 |

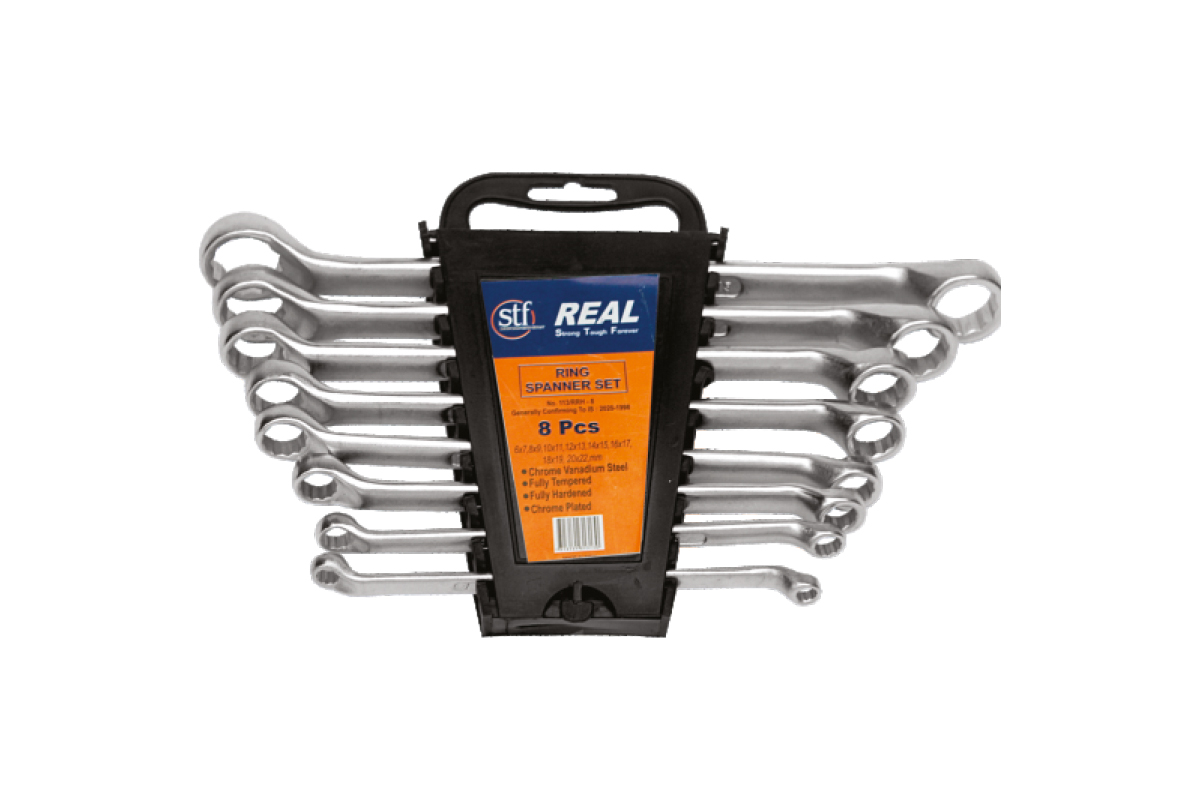

Shallow Ring Spanners Set
| SETS | SIZES | STD PACKING |
| RRS-6 | 6x7,8x9,10x11, 12x13,14x15,16x17 mm |
25 |
| RRS-8 | 6x7,8x9,10x11,12x13,14x15,16x17, 18x19,20x22 mm |
20 |
| RRS-10 | 6x7,8x9,10x11,12x13,14x15,16x17, 18x19,20x22,21x23,24x27 |
10 |
| RRS-10A | 6x7,8x9,10x11,12x13,14x15,16x17, 18x19,20x22,24x27,30x32 |
10 |
| RRS-12 | 6x7,8x9,10x11,12x13,14x15,16x17, 18x19,20x22,21x23,24x27,25x28,30x32 |
10 |
| SETS | SIZES | STD PACKING |
| RRH-8 | 6x7,8x9,10x11,12x13,14x15,16x17, 18x19,20x22 mm |
16 Sets |
| RRH-12 | 6x7,8x9,10x11,12x13,14x15,16x17, 18x19,20x22,21x23,24x27,25x28,30x32 |
8 Sets |
