Combination Spanner Raised Panel
Combination Spanner, Chrome Vanadium Steel, Raised Panel
| SIZE | LENGTH | WEIGHT | STD. PACKING | CARTON PACKING |
mm |
mm |
GMS |
pcs. |
pcs. |
|---|---|---|---|---|
| 6 |
95 | 16 | 10 | 1000 |
| 7 |
97 | 20 | 10 | 1000 |
| 8 |
108 | 28 | 10 | 800 |
| 9 |
114 | 3 | 10 | 700 |
| 10 |
128 | 40 | 10 | 600 |
| 11 |
132 | 43 | 10 | 500 |
| 12 |
137 | 54 | 10 | 400 |
| 13 |
145 | 65 | 10 | 400 |
| 14 |
164 | 80 | 10 | 300 |
| 15 |
175 | 90 | 5 | 300 |
| 16 |
185 | 100 | 5 | 225 |
| 17 |
205 | 135 | 5 | 200 |
| 18 |
205 | 150 | 5 | 200 |
| 19 |
232 | 160 | 5 | 150 |
| 20 |
232 | 170 | 5 | 150 |
| 21 |
258 | 190 | 5 | 150 |
| 22 |
289 | 215 | 5 | 125 |
| 23 |
289 | 225 | 5 | 125 |
| 24 |
313 | 260 | 5 | 100 |
| 25 |
324 | 270 | 5 | 100 |
| 26 |
324 | 300 | 5 | 100 |
| 27 |
361 | 350 | 5 | 80 |
| 28 |
369 | 400 | 5 | 70 |
| 30 |
381 | 525 | 5 | 50 |
| 32 |
391 | 620 | 5 | 50 |

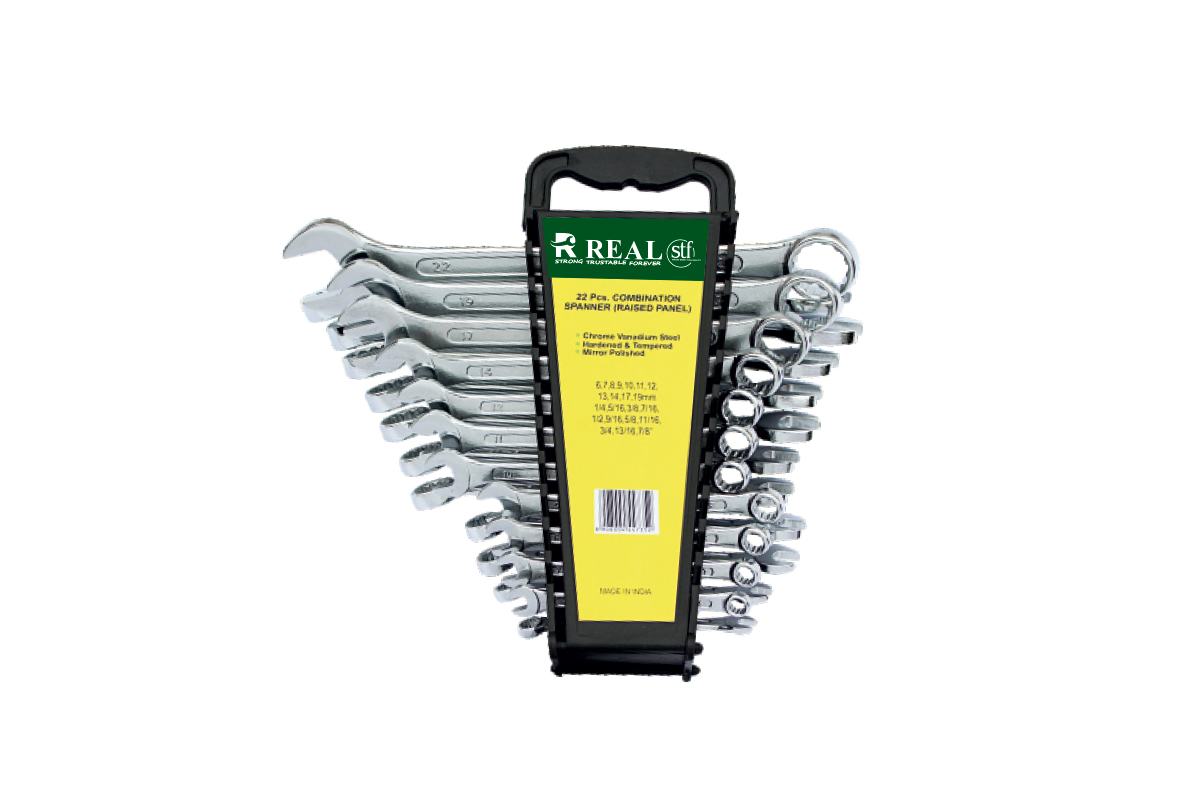

Combination Spanner Set
| SETS | SIZES | PACKING | STD PACKING |
| RCP-8 | 8,9,10,11,13,14,17,19 mm | HANGER | 24 Sets |
| RCP-12 | 6,7,8,9,10,11,12,13,14,17,19,22 mm | HANGER | 16 Sets |
| RCP-20 | 6,7,8,9,10,11,12,13,14,17,19,22,23,24,26,27,28,29,30,32 mm | KIT ROLL | 8 Sets |
| RCP-20 | 6,7,8,9,10,11,12,13,14,15,16,17,19,20,21,22,23,24,25,26,27,28,29,30,32 mm | KIT ROLL | 5 Sets |
