Double Open End Spanners Recessed Pattern
Drop Forged, Chrome Vanadium Steel, Chrome Plated, Polished Head, Available In Loose Pieces And Sets.
| SIZE | LENGTH | WEIGHT | STD. PACKING | CARTON PACKING |
mm |
mm |
GMS |
pcs. |
pcs. |
|---|---|---|---|---|
| 6 x 7 | 98 | 20 | 10 | 300 |
| 8 x 9 | 102 | 25 | 10 | 300 |
| 10 x 11 | 110 | 35 | 10 | 250 |
| 12 x 13 | 128 | 50 | 10 | 200 |
| 14 x 15 | 150 | 65 | 10 | 200 |
| 16 x 17 | 162 | 75 | 10 | 120 |
| 18 x19 | 181 | 110 | 10 | 100 |
| 20 x 22 | 199 | 155 | 10 | 100 |
| 21 x 23 | 208 | 165 | 5 | 60 |
| 24 x 27 | 225 | 245 | 5 | 60 |
| 25 x 28 | 233 | 265 | 5 | 50 |
| 30 x 32 | 245 | 325 | 5 | 40 |
Double Open End Spanner Set
| SETS | SIZES | STD PACKING |
| RD-6 | 6x7,8x9,10x11, 12x13,14x15,16x17 mm |
25 |
| RD-8 | 6x7,8x9,10x11,12x13,14x15,16x17, 18x19,20x22 mm |
20 |
| RD-10 | 6x7,8x9,10x11,12x13,14x15,16x17, 18x19,20x22,21x23,24x27 |
10 |
| RD-10A | 6x7,8x9,10x11,12x13,14x15,16x17, 18x19,20x22,24x27,30x32 |
10 |
| RD-12 | 6x7,8x9,10x11,12x13,14x15,16x17, 18x19,20x22,21x23,24x27,25x28,30x32 |
10 |

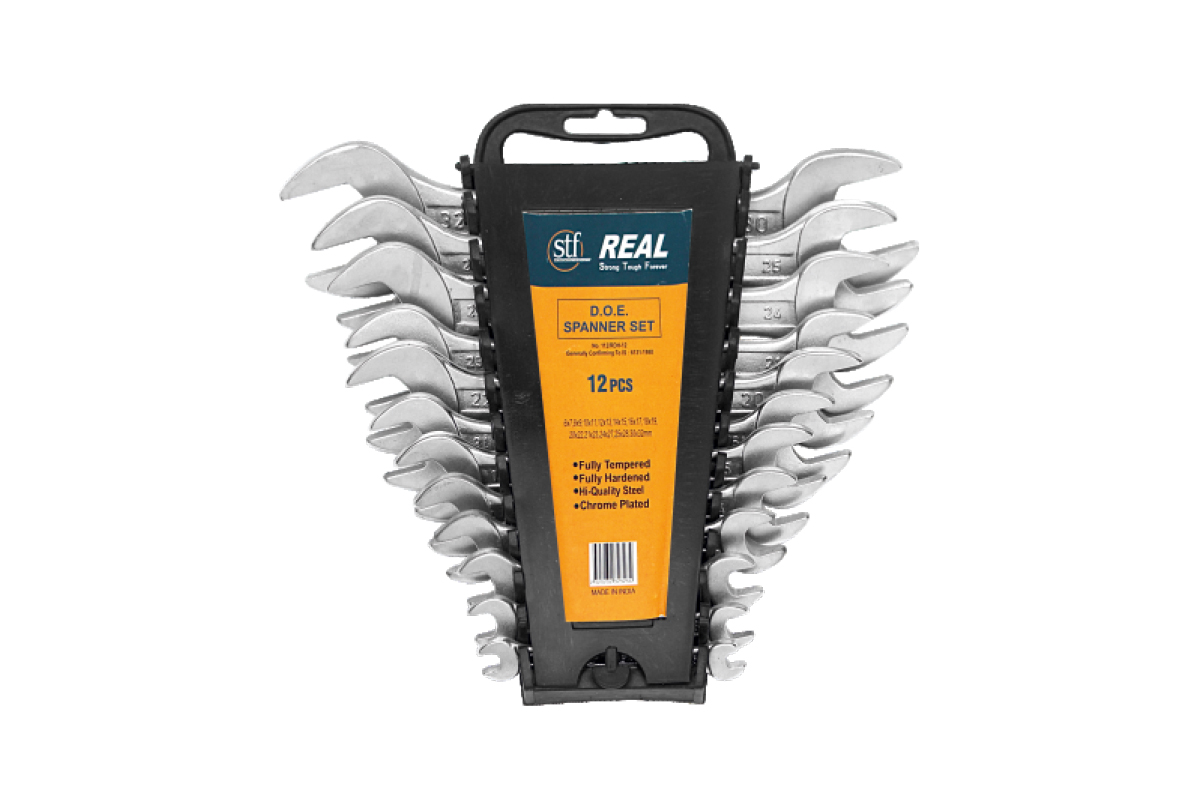

D.O.E Spanner Set (Hanger Packing)
| SETS | SIZES | STD PACKING |
| RDH-8 | 6x7,8x9,10x11,12x13,14x15,16x17, 18x19,20x22 mm |
16 Sets |
| RDH-12 | 6x7,8x9,10x11,12x13,14x15,16x17, 18x19,20x22,21x23,24x27,25x28,30x32 |
8 Sets |
