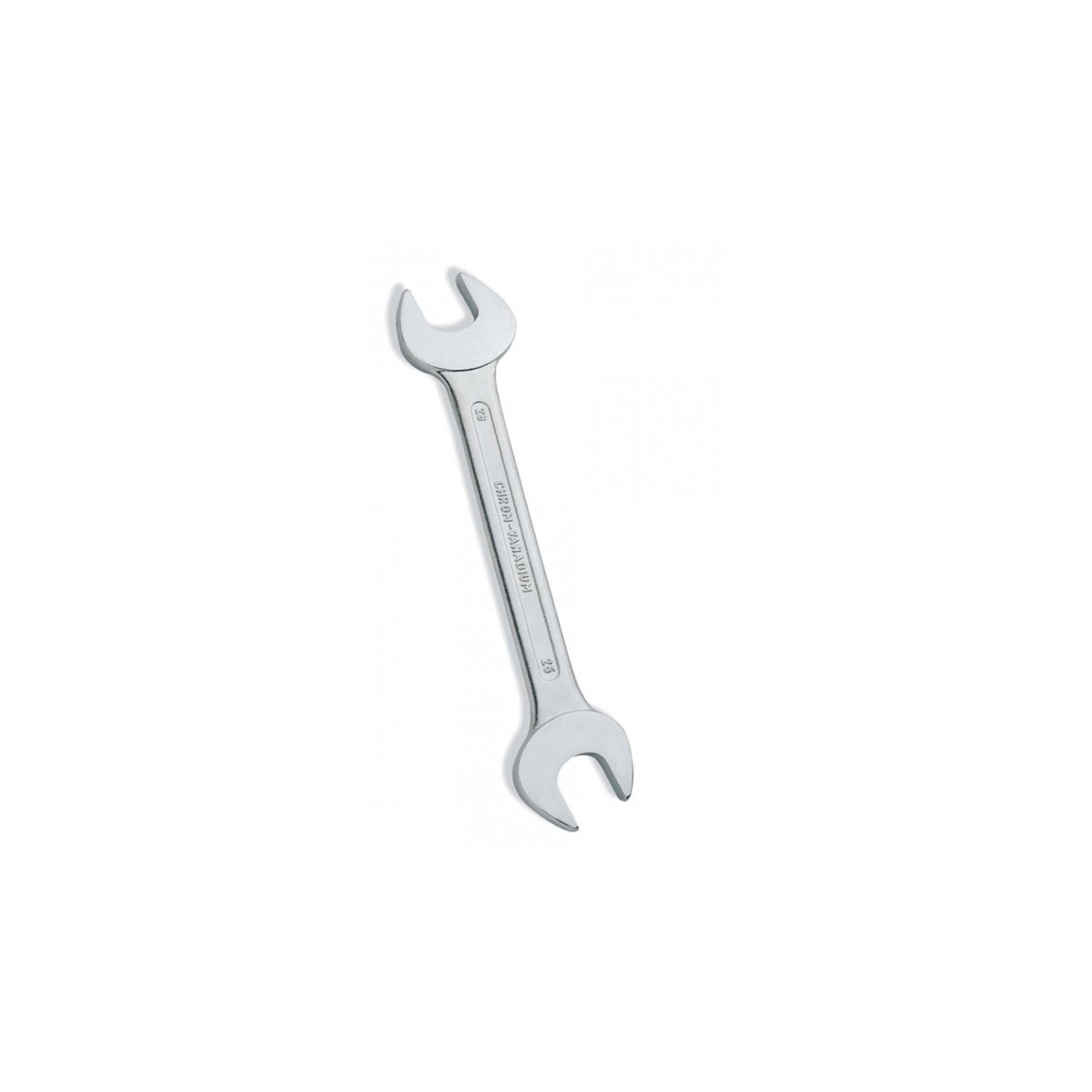

Double Open End Spanner (DIN - 3110)
Drop Forged, Chrome Vanadium Steel, Chrome Plated,
Polished Head, Available In Loose Pieces And Sets
| S. NO | SIZE | LENGTH | QTY./CTN. | GR.WT. |
ART. No. |
mm |
mm |
pcs. |
kgs. |
|---|---|---|---|---|
| 40101 |
6 x 7 |
123 |
1000 |
22.500 |
| 40102 |
8 x 9 |
137 |
600 |
21.300 |
| 40103 |
10 x 11 |
153 |
400 |
21.500 |
| 40104 |
12 x 13 |
173 |
300 |
22.500 |
| 40105 |
14 x 15 |
187 |
200 |
20.700 |
| 40106 |
16 x 17 |
202 |
150 |
20.300 |
| 40107 |
18 x 19 |
221 |
100 |
19.300 |
| 40108 |
20 x 22 |
236 |
100 |
23.700 |
| 40109 |
21 x 23 |
246 |
80 |
21.700 |
| 40110 |
24 x 26 |
265 |
60 |
23.300 |
| 40111 |
25 x 28 |
275 |
40 |
18.600 |
| 40112 |
30 x 32 |
300 |
40 |
22.100 |
| 40113 |
30 x 34 |
310 |
30 |
19.500 |
| 40114 |
30 x 36 |
320 |
30 |
21.000 |
| 40115 | 36 x 41 | 370 | 20 | 19.500 |

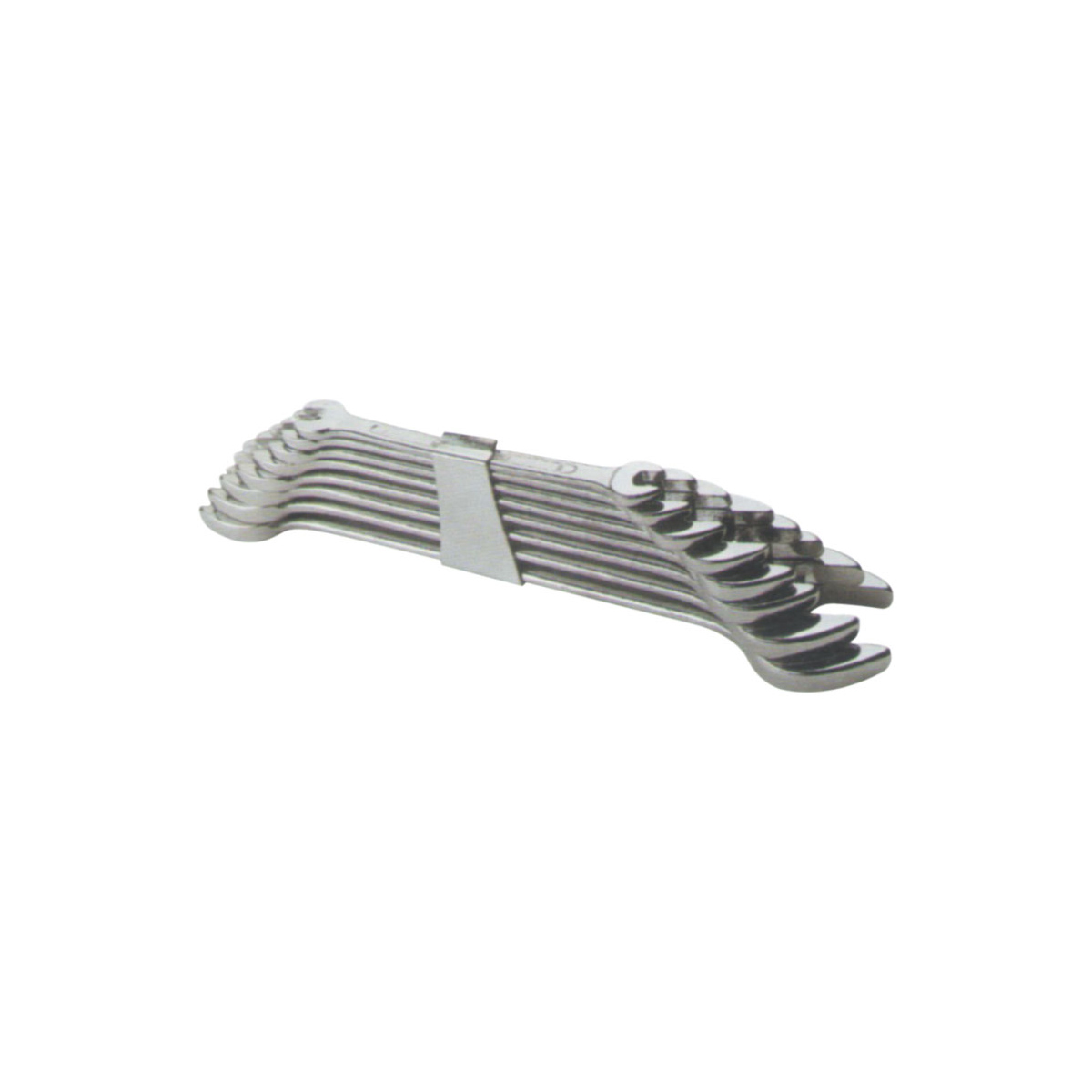

Metric Sizes Sets
| S.NO | NO. OF | SIZE | QTY./CTN. | GR.WT. |
SET No. |
pcs./set |
mm |
set. |
kgs. |
|---|---|---|---|---|
| 40180 | 6 | 6x7, 8x9 10x11, 12x13 14x15, 16x17 |
60 | 25.500 |
| 40181 | 8 | 6x7, 8x9 10x11, 12x13 14x15, 16x17 18x19, 20x22 |
30 | 25.600 |
| 40182 | 12 | 6x7, 8x9 10x11, 12x13 14x15, 16x17 18x19, 20x22 21x23, 24x27 25x28, 30x32 |
10 | 25.800 |
